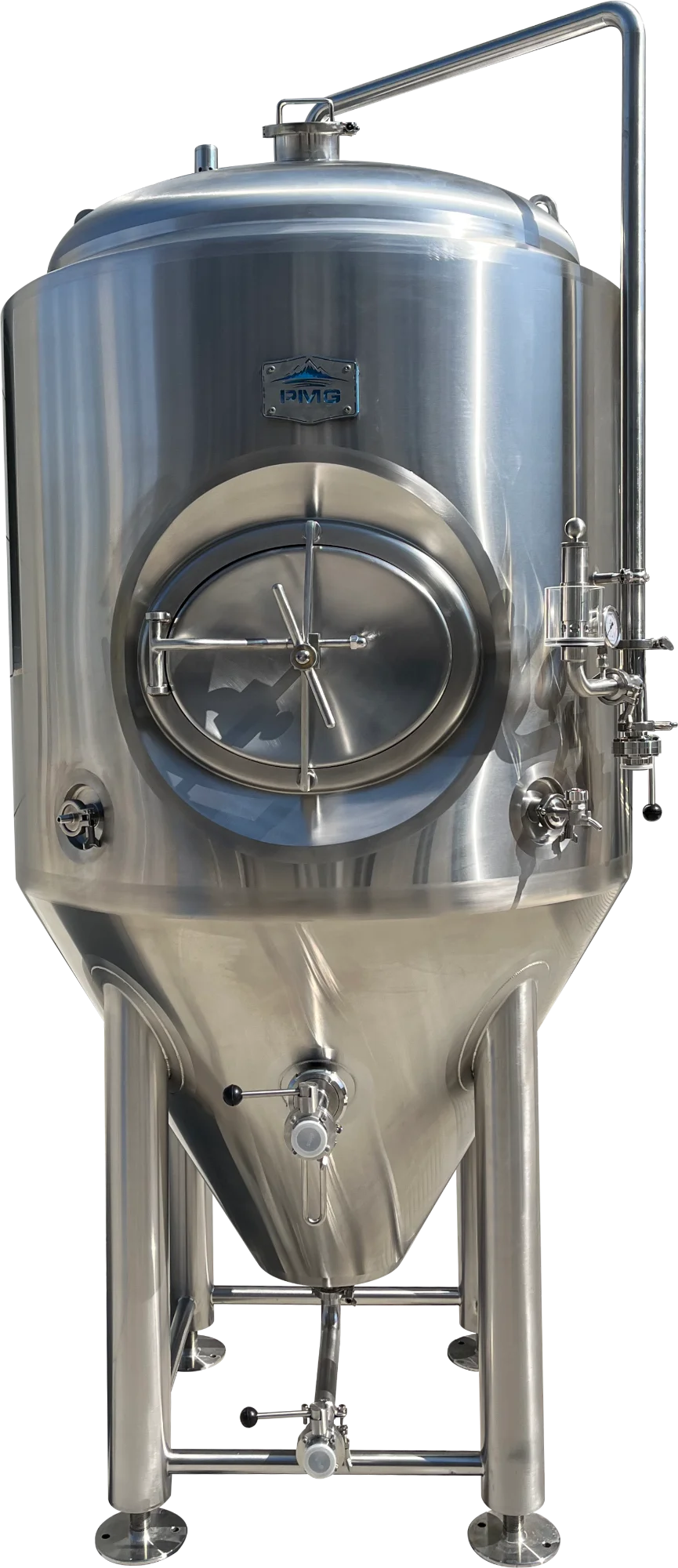

Conical Fermenters/Unitanks

Ferment, carbonate or serve from precision-built tanks (100l to 200hL+)
Conical Fermenters/UnitanksConical Fermenters/UnitanksConical Fermenters/UnitanksConical Fermenters/Unitanks
PMG Conical Fermenters/Unitanks are available in these configurations:
Heating Method:
No items found.

200l to 200hL tanks fabricated from the highest grade stainless-steel and passivated 100% TIG welding for fermenting and carbonating beer, cider and other beverages.

  • Choice of SS304 / SS316
  • 2mm external layer
  • 3mm inner layer and dish head
  • Insulation thickness: 50mm (PU)
  • Glycol cooling jacket on cone and side of tank
  • Leakage tested by pressured gas/water for tank and jacket
  • Pressure rating: inner vessel: 3bar; jacket: 6bar
  • Leakage test by pressured gas/water for tanks and jackets
  • Exterior #4 surface outer cladding; mirror polish
  • Interior finish pickled and passivated
  • Approx 25% head space

Accessories and Options

  • Thermowell with PT100 Temperature sensor
  • Pressure relief safety valve (PVRV)
  • Sample port with sample valve
  • Carbonation port
  • CIP arm with 360° coverage spray ball
  • Shockproof pressure gauge on CIP arm
  • Side shadowless manway
  • Top manway
  • Rotating racking arm and port on cone with butterfly valve
  • Tri-clamp discharge arm with butterfly valve
  • Hop addition (dry hop) port with end cap
  • 4pcs stainless-steel legs with leveling pad
  • Lifting lugs and ladder rack
  • Complete valves and fittings
  • Liquid level indicator
  • Spunding valve adjustable from 0-2 BAR
